Overview

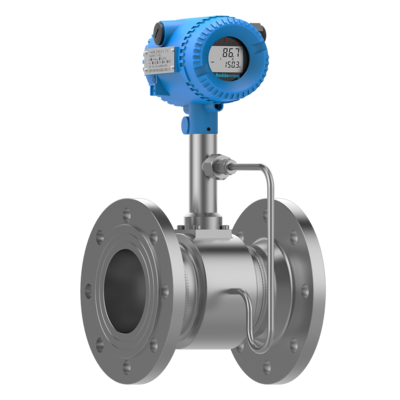

TheREDS2800 is a Vortex flowmeter with integrated temperature sensor. It is best suited for flow measurement of liquids, dry or humid gases and saturated or superheated steam in supply processes (auxiliary service) and distribution networks. The device is also the optimum solution for advanced energy management systems (acc. to ISO 50001) as it can be supplied with integrated gross and net heat measurement for steam and condensate. For gas and steam measurements with varying process conditions the Vortex meter can also be equipped with an optional integrated pressure sensor.
Typical Applications
General
· Utility applications: Energy distribution in auxiliary and supply circuits
· Measurement of (non-)conductive liquids, gases, saturated and superheated steam
· Gross/net heat metering of steam and hot water
· Monitoring of compressor output and evaluation of Free Air Delivery (FAD)
· Measurement of consumption of industrial gases (natural gas, nitrogen etc.)
· Measurement of consumption in compressed air systems
Chemical and other process industries
· Hydrocarbons, thermal oils etc.
· Solvents
· Desalinated water
· Gases, welding gases, steam
· Petrochemical products (benzene, ethylene, etc.)
Iron, steel and metal industry
· Cooling circuits
· Compressed air
· Inert gases
· Oxygen
· Natural gas
· Steam
Food and beverage industry
· Purified and desalinated water
· CO2
· Burner consumption
· Steam
Machinery and apparatus (OEM industry)
· Carrier air etc. (e.g. for sterilisation units, packaging machines etc.)
· Burner consumption
Wastewater industry, renewable power industry
· Dry and humid biogas at the inlet of CHP (combined heat and power) systems
Pulp and paper industry
· Compressed air, steam etc.
Oil and gas industry
· Petrochemical products (benzene, ethylene, steam, etc.)
· Natural gas
