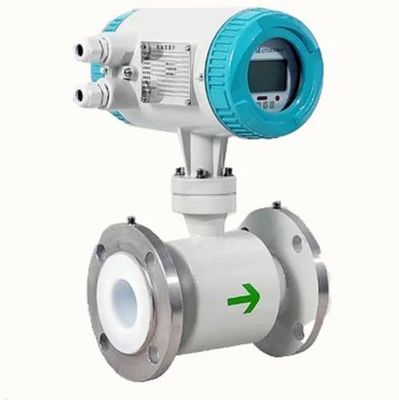

REDU3000 – The first choice for all industrial applications.
Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.
Real-time diagnostic keep your process up and running
– Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
– Clear text messages simplify troubleshooting
In-built noise/grounding check
– Verify the installation is correct from day one
– Checks for proper grounding which is fundamental to an accurate flow measurement
In-built verification for highest confidence in your flow measurement
– Checking for sensor and transmitter integrity
– No need to remove the flowmeter from the process
Simplicity of operation
– Automatic self-configuration sequence
– Incredibly easy to work with
Ethernet IP communication
– For remote access to built-in diagnostic monitoring the flowmeter and your process
– Flowmeter verification and configuration over Ethernet minimizing commissioning time
– Built-in webserver, no additional software required for flowmeter configuration
Data
General specifications:
Measuring value error
– Standard 0.5% of rate, option for 0.3% and 0.1 % of rate
Nominal diameter
– DN 3 to 2000 (1/10 to 80 in.)
Process connection
– Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS, AS2129
Nominal pressure
– PN 10 to 100,
– ASME CL 150, 300
Lining
– Hard rubber, soft rubber, PTFE, PFA, ETFE, Linatex
IP rating
– IP67 or IP68
Fluid temperature
– Up to 180 °C (356 °F)
Communication
– HART
– PROFIBUS DP, Profibus PA
– Modbus RTU, Modbus TCP
– Ethernet IP, Profinet
Ex approvals
– ATEX, IECEx, cFMus, NEPSI
Process diagnostics
– Empty pipe, partially filling, gas bubbles, electrode impedance, conductivity, sensor temperature
