Overview
The REDG5000 flow meter combines state of the art ultrasonic flow measurement capability with a low-cost transmitter package that can be installed right at the process measurement point. It's designed specifically for water and wastewater applications in full pipes.

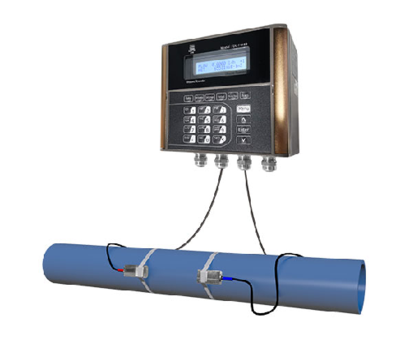

The REDG5000 ultrasonic flowmeter is offered with wetted or dry clamp-on transducers for convenience. Wetted transducers offer accuracies better than 1%. The REDG5000 clamp on flowmeter has no moving parts and requires minimal maintenance. An onboard microprocessor used patented Correlation Transit TimeTM technology for long-term drift-free operation. Automatic adjustment to changing fluid properties and dynamically configured operating software simplify programming.
Product Features
MEASURING ACCURACY:
±1.0% of reading from 1.5 to 40 ft/sec (0.5 to 12.0 m/sec) and ±0.015 ft/sec (±0.0046 m/sec) for velocity below 1.5 ft/sec (0.46 m/sec).
REPEATABILITY & LINEARITY:
±0.25%
FLOW MEASURING RANGE:
±0.07-40 ft/sec (±0.02-12 m/sec)
PIPE DIAMETER / SIZES:
SE16A: 0.5” to 1.5” (15 mm to 40 mm)
SE16B: 2” to 10” (50 mm to 250 mm)
SE16C: 12” to 48” (300 mm to 1200 mm)
PIPE MATERIALS:
Any metal or plastic sonic conducting materials, including carbon steel, stainless steel, ductile iron, concrete lined ductile iron, cast iron, PVC, HDPE, PVDF, fiberglass, copper, brass, aluminum, and pipes with bonded liners, including epoxy, rubber, and PTFE.
OPERATING FREQUENCY:
SE16A: 2.56 MHz
SE16B: 1.28 MHz
SE16C: 640 kHz
OPERATING TEMPERATURE RANGE:
Transducer:
-40°F to 300°F (-40 to 150°C)
Electronics:
-5°F to 140°F (-20 to 60°C)
POWER INPUT:
100-240VAC 50-60Hz, 10 VA max.
Optional: 9-32VDC, 10 Watts max.
ANALOG OUTPUT:
Isolated 4-20mA/0-5V, 1000 ohm load max., programmable offset
CONTROL RELAYS:
2 Relays, form C dry contacts rated 5 amp SPDT; programmable flow alarm an/or flow proportional pulse
Optional: 4 additional (6 total), rated 5 amp SPDT
SAFETY RATING:
CE Certification
APPROXIMATE SHIPPING WEIGHT:
12 lbs. (5.5kg)
