Overview

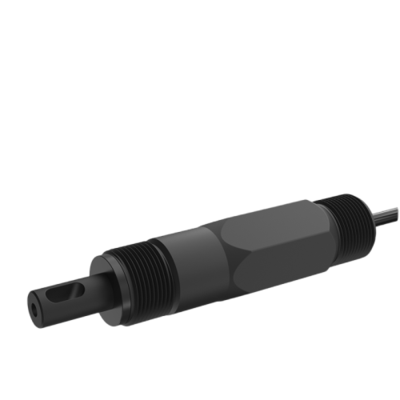

The Turtle Tough Conductivity Sensors for high conductivity are made very compact in size for a variety of applications. It’s small footprint and economical pricing make it ideal for use in OEM applications, such as skid mounted R.O. systems, water treatment units, chemical dilutions and many more. The insulator comes standard as CVPC but can also be supplied with TEFLON (PTFE) upon request. Alternative material of construction are also available for the measuring electrodes (316SS standard).
Wetted materials of construction are 316 stainless steel and CPVC, with double EPDM O-ring seals. The outer O-ring is the only one to touch the process fluid, allowing the backup rear seal to remain free from chemical attack. The Thermowell containing the temperature sensing element in its tip is exposed directly to the stream, assuring rapid automatic compensation for maximum accuracy.
Process connections are 3/4″ NPT for insertion, and the back portion is 3/4″ stainless steel tubing, which can be gripped by a swage fitting for submersion applications. When longer cable runs than the standard ten feet are required, a junction box can be attached to the back of the sensor in the same manner. A Teflon insulator is available as an option to the standard CPVC.
Product Features
3m Cable
3/4” NPT connection
CPVC with 316SS electrodes
Cell Constant 10.0
Very compact size for a high cell constant value
O-ring seals for high on-stream reliability
Thermowell for rapid temperature response
